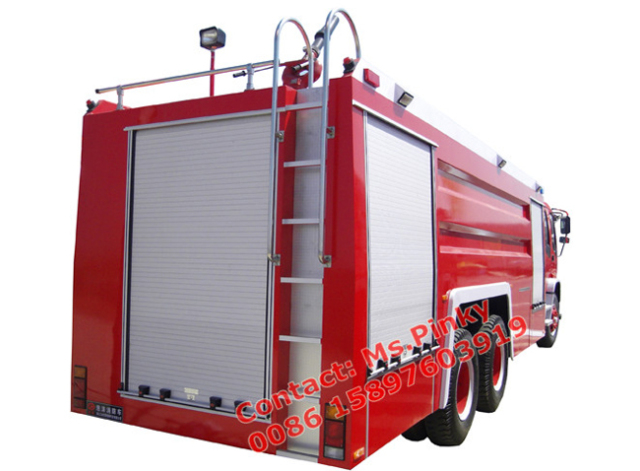

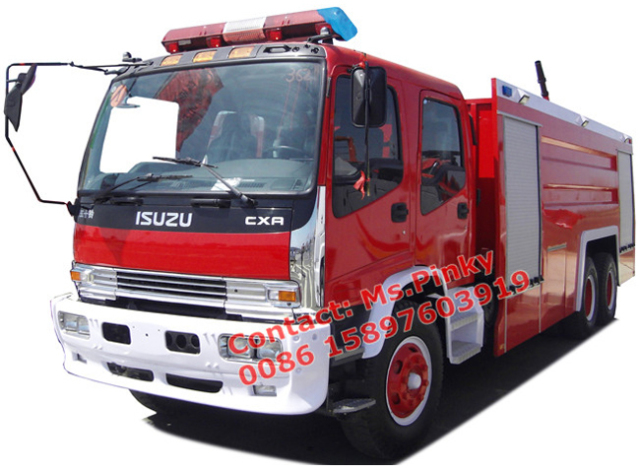

ISUZU FVZ Heavy duty Fire Truck |
|||
|
Chassis Model /Manufacturer |
ISUZU FVZ QL1250 |
||
|
cab |
Double cabin (four doors ) |
||
|
Overall Dimension |
10325×2500×3750mm |
||
|
Kerb Weight |
12060 Kg |
||
|
Fuel type |
Diesel |
||
|
Fuel consumption |
18L/100km |
||
|
Ground clearance |
248mm |
||
|
Engine |
Model/Rated Power |
6HK1-TCSG40 |
|
|
|
Displacement/ power |
7790/206kw （280HP） |
|
|
|
Emission Standard |
Euro 4 |
|
|
|
manufacturer |
ISUZU motor Co., Ltd. |
|
|
|
Diesel 4-stroke, 6-cylnder in line with water cooling, turbo charging |
||
|
driving type |
6*4 |
||
|
Wheel base |
4350+1300mm |
||
|
Front/rear tread |
1855/1855 |
||
|
Front axle |
7T front axle |
||
|
Rear axle |
18T*2 rear axle |
||
|
Steering |
Power steering |
||
|
Cultch |
Single dry iaphragm spring cultch |
||
|
Brake system |
Air brake, exhaust brake、air cut brake |
||
|
Gear box |
FAST 9 Shift gear box |
||
|
Number of leaf spring of suspension |
9/14 |
||
|
Type & Size of Tyre |
10.00R20 |
||
|
Max Speed |
90Km/h |
||
|
technical parameter of fire fighting body |
|||
|
Liquid tanker |
Volume: total 8000L, (among, water: 8000L; foam: 4000L ) |
||
|
Fire fighting pump and pipeline system |
Model of Fire fighting pump: CB20.10/30.60 Pressure: 1.0Mpa Flux: 40L/s Suction depth: ≥7m Suction time: ≤35s Installing type: central or rear |
||
|
Fire fighting monitor |
Model: PP32 Range: water≥50m foam≥45m Pressure: 1.0Mpa. |
||
|
PTO |
sandwich PTO, splashing-type lubricate, can put out fire when driving. |
||
|
Material of carriage |
Carriage is made of high quality carbon steel and Aluminum embossed sheet |
||
