| Products Technical Specification | |

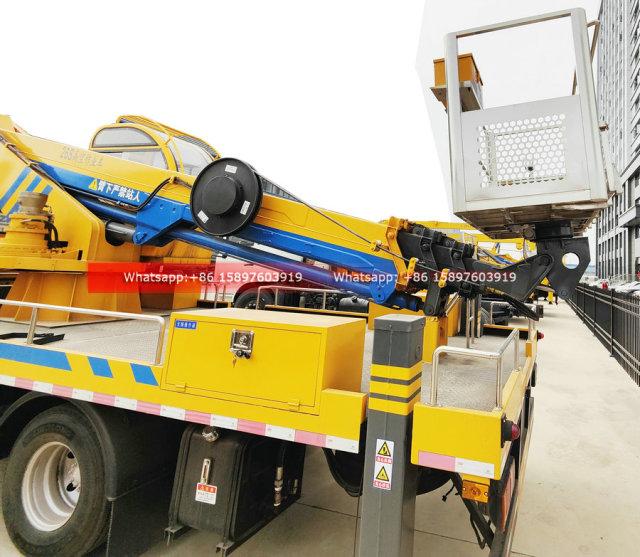

| Type | ISUZU KV100 Manlift Truck |
| Brand | 4*2 |
| Cab | Left hand drive, Power steering,with air condition. |
| Vehicle Description | |
| Overall dimensions（mm） | 7000*2200*3000 |
| Curb weight(vehicle) (kg) | 3470 |
| Loading capacity (kg) | 8000 |
| Max speed (Km/h) | 95-120 |
| Engine | |
| Model/Rated Power | 4KH1CN6LB |
| Displacement/ power | 3000L / 88KW,120HP |
| Emission Standard | Euro 6 |
| manufacturer | ISUZU motor Co., Ltd. |
| Diesel 4-stroke, 4-cylnder in line with water cooling, turbo charging | |
| Chassis Description | |
| driving type | 4*2 |
| Wheel base | 3360mm |
| Front/rear tread | 1680/1650 |
| Front axle | 4T front axle |
| Rear axle | 7T rear axle |
| Gear box | ISUZU MLD SIX Forwards |
| Type & Size of Tyre | 235/75R17.5(6+1spare tire) |
| item | data | ||
| size | ★length*width*high | 6800*2170*3480 | |
| mass | Passengers with driver | 2 | |
| ★total weight | 4495kg | ||
| Rated load of working platform | 250kg | ||
| ★Maximum operating height | 25/26/27m | ||
| Main specs | ★Operating amplitude at maximum operating height | 5.0m | |
| ★Maximum operating range | 13m | ||
| ★Operating height at maximum operating amplitude | 5m | ||
| ★outrigger span | transverse | 5400mm | |
| direction | 4000mm | ||
| ★wheelbase | 3360mm | ||
| Max. Speed | 100Km/h | ||
 |  |  |
 | 1.Front H-Type supporting leg and rear V-type supporting leg, two section Horizontal Leg, large outrigger span, good stability, the outriggers could be operate separately, it adaptable.The supporting legs can be operated at the same time or alone, in the frame on both sides. To adapt variety of working conditions
|
 | 3.Double amplitude oil cylinder, arms landing and gyration more stable 4.The left and right slewing platform adopts the imported closed swing cylinder, which is flexible, convenient, safe and reliable. |
 | 5.The platform has real-time display of load and weight and overload alarm function 6.With wind speed inspection and alarm function |
 |
|
 |
|
 |
|
 |
 |  |  |
 |  |  |
 |  |  |
